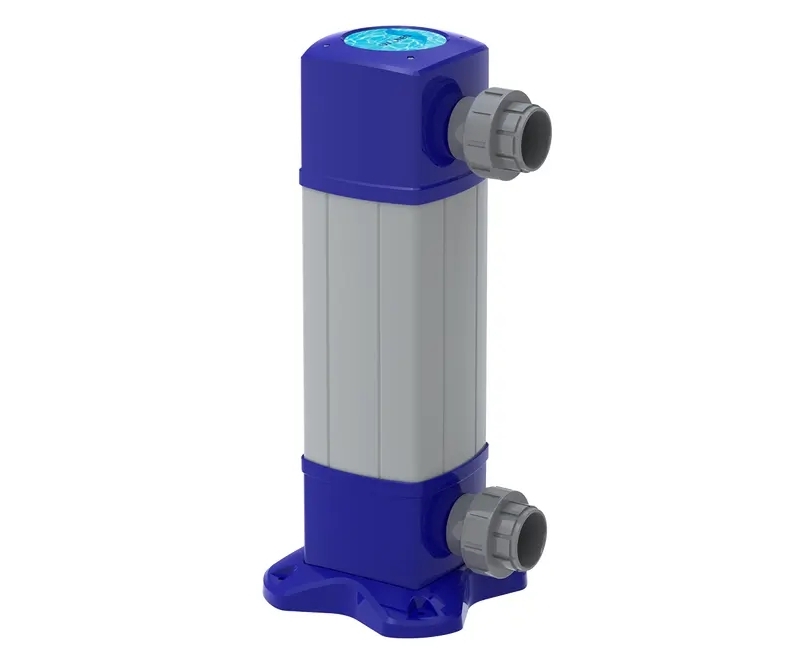

BIO UV NEO 12 UVC
The Bio UV Neo 12 UVC unit is a Ultraviolet Sanitizer and Clarifier designed specifically for the koi industry and are made of PVC plastic with four mounting feet and PVC electrical enclosure bonnet.
The Bio UV Neo12 UVC have earned an outstanding reputation for quality, functionality, performance and reliability. Three different models serve systems with a maximum water flow rates of 12000 lph, 18000 lph and 25000 lph
The Bio UV Neo 12 UVC model features an electronic ballasts.
Pond water containing unwanted contaminates enters the Bio UV Neo unit's wet chamber and is exposed to the light rays generated by the UV bulb. The Bio UV Neo unit has been designed to allow for some turbidity in the water, as turbidity will reduce the UV light wave transmission capability. Therefore, all Bio UV Neo Series are sized for a minimum two second exposure time to allow for possible turbidity in the water and the reduction in the killing power of the UV bulb when it nears the end of its useful life. When the incoming water is exposed for this duration, the water exiting the unit is near drinking water biological quality.
BIO UV NEO 12 Product Specifications:
- Power supply: 240V/60hz
- Housing: PVC plastic
- Max flow rate: 12000 lph
- Ballast: Electronic
- Lamp: High output – low pressure, long life (13,000 hrs.)
- Number of lamps: 1
- Indoor/Outdoor installation: yes
- Limited warranty: 2 years
- Plumbing connection: 75 mm PVC unions
- Complete with lamp indicator
