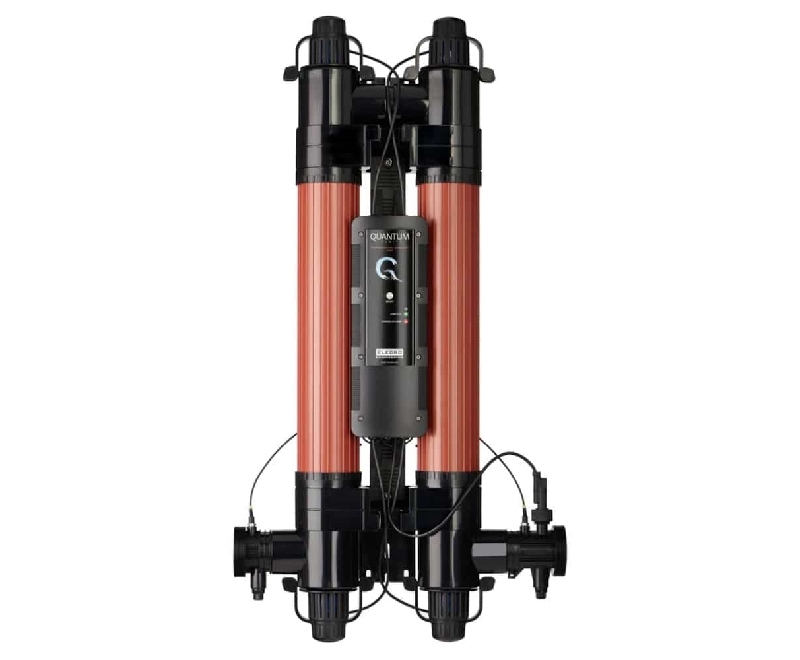

Elecro Quantum 110 Watt Double Classic UVC

This Elecro 110 watt Quantum Double Classic UVC uses the new ceramic Nano Crystal technology, a prime focus of the science world today; processing the power to sterilise sewage into drinking water without the use of chemicals. Now the same technology has been adapted for the use on ponds, swimming ponds and swimming pools alike.

This new Elecro 110 Watt Quantum Double Classic features photocatalytic Ti02/MO oxidiser and clarifier in one single unit, with the combined photocatalytic, hydroxylradical and uv technology, these amazing UV's eleminiates contaminents leaving the water fresh and clean and significantly reduces the need for chemicals in the pool or pond.

Each Quantum UVC is equipped with an inteligent lamp life indicator, and the UV lamp has an expected life span of two years. These incredible UVC sterilisers are both salt chlorinated and sea water compatible.

Elecro 110 Watt Quantum Double Classic UVC Product Features:

• Completely destroys all bacteria, microorganisms and harmful pollutants with only pure water and CO2 being emitted back to the pond / pool.
• Only Technology with the ability to brak down organic matter such as sun tan oils, urea and pathogenic bio-film
• Drastically reduces chemical use
• Visually clear and healthy pool water, with exceptional clarity and brilliance.
• Fully autonomous automatic system
• UV lamp lifespan is longer than conventional UV products (14000 hours) and comes complete with lamp indicator.
• No Impact on pH levels and compatible with all other treatments including salt electrolysis and sea water.

Elecro 110 Watt Double Classic Quantum UVC Product Specifications:

• Power Supply: 100v to 240v
• Min Flow Rate: 1.5m³ Per Hour
• Max Flow Rate: 28000 lph
• Max Pool Size: 130,000 Litres
• Max Power Consumption: 128 watt
• Lamp: Low pressure / High Output
• Lamp Life: 9000 - 14000 hours
• Dosing Rate: Exceeds the equivalent of 30mj/cm² at max. flow rate
• Ingress Protection Rating: IP64
• Frequency: 50/60Hz
• Max Working Pressure: 3 Bar
• Connections: 2 Inch 63 mm Stepped ABS Unions + Reducers 1-1/2 Inch 50 mm
• Application: 100% Chlorinated Salt and Sea Water Safe
• Mounting: Vertical or Horizontal wall mounting
• Oxydisation Process: Quantum Photocatalytic Oxidiser (PCO) and Hydroxyl Radicals (HO)

These Quantum UV's can be mounted both horizontally and vertically to ease with installation and all units in this range are fitted with a flow switch to protect the unit when and if there is a reduction or loss of water flow.
