Nexus Automatic Cleaning system for Nexus 200 and Nexus 300 filter systems that are pump Fed.

Continuing their long standing reputation for innovation, Evolution Aqua have developed a fully automatic cleaning system for their Nesus Filters. The Nexus Automatic System now enables Nexus owners to benefit from a fully automated cleaning cycle on their multi award winning Nexus filtration systems. Physically turning ball valves and manually switching pumps on and off will now be a thing of the past thanks to the Nexus Automatic System. All of the key processes that form the cleaning cycle are now controlled automatically with this easy to install kit.

Nexus Eazy 200 and 300 Automatic Cleaning System Product Features:

• Hassle free way to clean Nexus filtration systems.
• Automates the cleaning process of the Nexus
• Easily fits on to all Nexus filters (post 2006 models)
• Electronic control box automatically operates valves and pumps.
• Adjustable timer controls the frequency of the automatic cleaning cycle to suit the users needs.
• Easy to set up for multiple cleaning cycles
• Manual cleaning cycle can be carried out if needed at the touch of a button
• Gravity and Pump fed versions available.

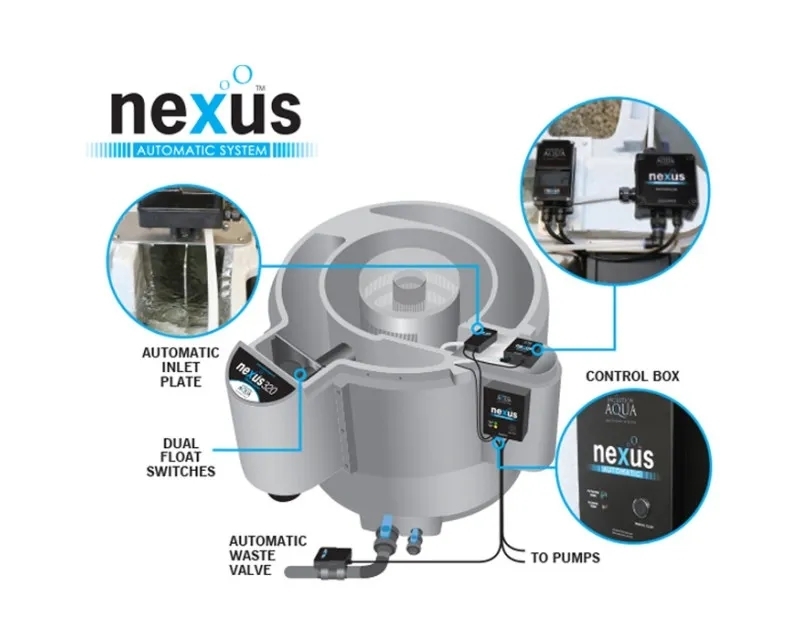

The Nexus Automatic System can be installed on Nexus 200 and 300 filters manufactured after 2006, whether on gravity-fed or pump-fed installations. The kit includes a control box which connects up to an automated waste valve, airpump control box and an automatic inlet slide plate (for gravity fed models only). Once installed and connected to your pond pump and mains power the system will carry out cleaning cycles at timed intervals or when pressing the manual clean button.

The Nexus Automatic System will control the cleaning cycle fully automatically. Cleaning is done on a timer, which is factory set to clean once every 3 days, however, this is easily adjustable to fit in with your pond requirements. The Nexus Automatic System will run a cleaning cycle which lasts approximately 10 minutes.

Nexus Eazy 200 and 300 Pump Fed Cleaning Cycle Overview:

• Adjustable timer kicks in to start a cleaning cycle.
• Control box automatically switches circulating pump off.
• The water level in the Nexus equalises.
• aAr is diverted from the outer bio chamber to the EAZY to clean the media.
• After the media has been cleaned, the automated waste valve opens.
• EAZY is drained to waste.
• The automated waste valve closes.
• Air is diverted back from the EAZY to the bio chamber.
• Circulating pump is switched back on
• Nexus returns to filtration mode.

Please note for clarity:

There are three versions of the Nexus Eazy Automatic cleaning system, there is one version that encompases all the pump fed versions of the Nexus 300 and 200 series models. There is a second version that is for use on all Nexus Eazy 300 filter bodies which are gravity fed, and finally there is a third version for all the Nexus Eazy 200 filter bodies which are gravity fed. If unsure which version you require please contact us for advice.

This version of the Nexus Automatic Cleaning system is for the Nexus Eazy 200 and Nexus Eazy 300 bodied filter range that are pump fed.
