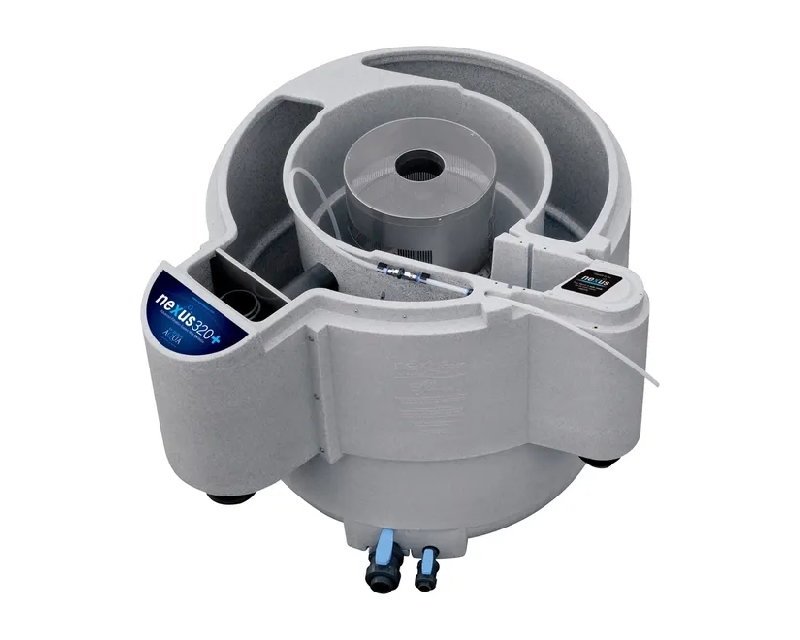

Evolution Aqua Nexus Eazy 320 Plus
The Nexus Eazy 320 Plus filter is an innovative biological and mechanical filter system in one. Building on the tried and tested technology that has been ever present in the world renowned Nexus, the team at Evolution Aqua have gone even further to enhance their number one Koi pond filter.
The Nexus Eazy 320 Plus filters now come with a new filter media called K+ Media in the moving bed outer chamber for vastly improved biological filtration and faster filter maturation. The new Nexus 320+ filters are also supplied “auto ready”, with factory fitted fixings already in place, making it even easier to upgrade with the Nexus Automatic Cleaning System.
K+ Advanced Filter Media
After many years of research, Evolution Aqua have now developed a new media that not only gives class leading surface area, but also overcomes the problem of long maturation times. K+ Media with its innovative design, and class leading surface area provides enhanced biological and mechanical filtration.
As Evolution Aqua extrude K+ Media, Minerals and Enzymes are added to the raw material. The result of this process, unique to Evolution Aqua, is a filtration media that not only outperforms most of its competitors due to its large protected surface area, but also answers the problem of how to speed up the time taken to mature your filter.
With a new shape and profile, K+ Media has also been designed to have an increased and class leading surface area, meaning an overall surface area of 1,350m2 per m3. More importantly for biological filtration, the protected surface area of K+ Media is 1,025m2 per m3. This allows a stable bio-film to form and remain intact when used in moving bed biological filtration, as in the new Nexus Eazy 320+.
Easy To Clean And Maintain
A key feature of all Nexus 220+ and 320+ filtration systems is the sheer ease of maintenance. This still remains the case with the new Nexus systems. Simply operating a combination of air valves and waste valves ensures that the Eazy filter and main filter body can be easily cleaned to deliver consistent water quality.
Better Solids Handling
Inside the centre mechanical stage of the Nexus Eazy 320+, there is a much larger area for solid waste to be captured and to settle. This area can then be cleaned even easier than before ensuring the filter does not clog up with unnecessary amounts of waste.
Nexus 320+ Removable Eazy
All Eazy filters used in the Nexus Eazy 320+ and Nexus 220+ series can be removed if needed. This added feature is ideal when undertaking further maintenance.

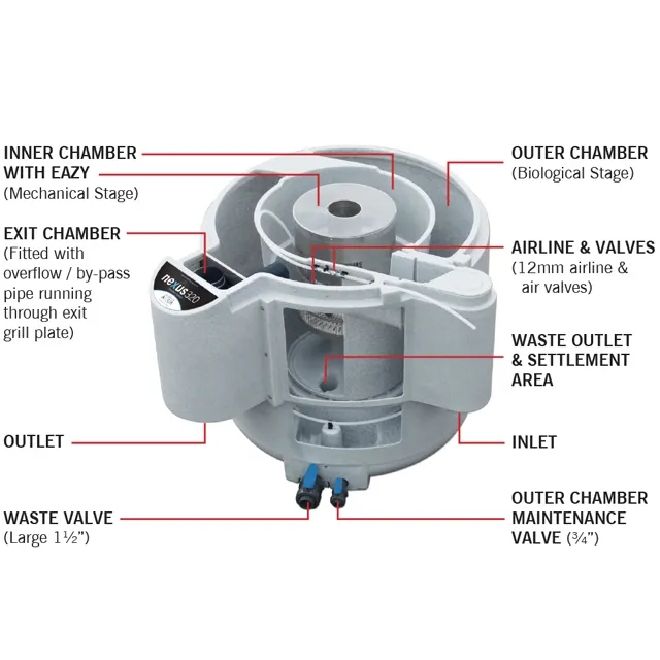

How The Nexus Eazy 320+ Filter Works:
The Nexus 320+ filter is an innovative biological and mechanical filter system in one. Water from the pond enters the Nexus+ via the inlet into the inner chamber which works as a vortex allowing larger solids to settle out. The water then passes through the Eazy filter, where finer particles are removed at the mechanical stage of filtration, thanks to the static bed of K1 Micro filter media.
The mechanically clean water then passes to the outside chamber of the Nexus+ where the new K+ Media Moving Bed is located for biological treatment prior to being returned to the pond. At this stage, biological breakdown occurs through different strains of bacteria and filter feeders living on the vast protected surface area of each piece of the K+ Media. These bacteria convert Ammonia and Nitrite into less harmful Nitrate. Water then passes through the exit grill into the outlet, returning back to the pond.
Nexus Eazy 320+ Specifications:
- Maximum pond size: 34,000 litres / 7,500 gallons
- Recommended flow rate: 11,000 litres per hour
- Maximum flow rate: 13,000 litres per hour
- Volume of water in Nexus: 840 litres
- Amount of K1 Micro in EAZY: 20 litres
- Amount of K+Media supplied: 100 litres
- Maximum amount of K+Media: 300 litres
