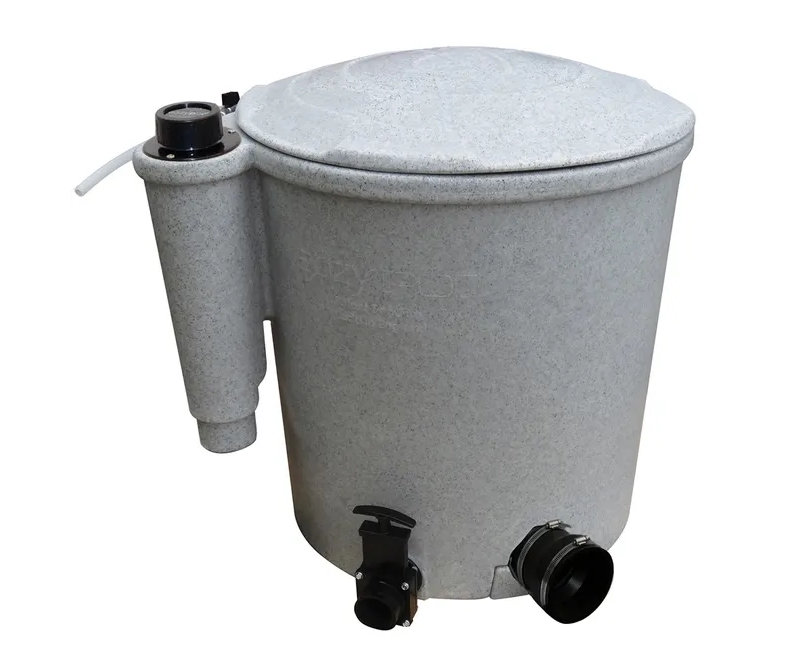

Nexus EazyPod Filter

The Nexus EazyPod filter is a compact member of the Nexus family, the EazyPod is a mechanical and biological filter system for ponds up to 10,000 litres all in one unit.

The Eazy Pod utilises 18 litres of static K1 Micro, which provides enhanced biological benefits, even when using the EazyPod solely as a mechanical waste filter. The Nexus EazxyPod is available in Grey or Green colours.

Nexus EazyPod Filter Overview:

A compact member of the Nexus family, the EazyPod is a mechanical and biological filter system for ponds up to 10,000 litres. The EazyPod utilises 18 litres of static K1 Micro, which provides enhanced biological benefits, even when using the EazyPod solely as a mechanical waste filter. Also available as EazyPod Air models, which come supplied with AirPump70 Kit.

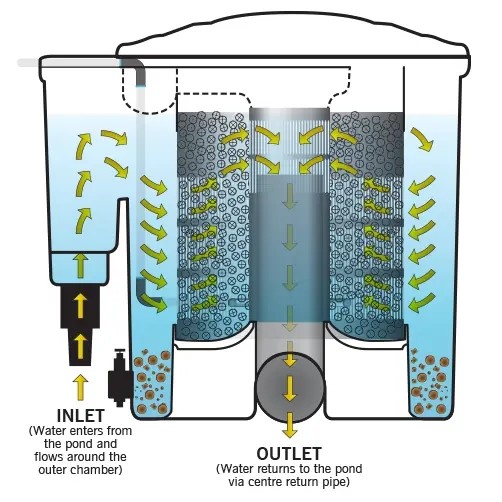

How the Eazy Pod works:

Water from the pond enters the Eazy Pod via the inlet and then flows around the circumference of the outer chamber of the Eazy Pod, passing through the stainless steel grill causing many of the larger solids to be filtered out and settle in the base of the outer chamber. This is the first stage of mechanical filtration. As water enters the central chamber, through the stainless steel grill, the fine smaller solids become trapped in the mass of K1 Micro. Bio-films build up on the protected surface area within each piece of media, allowing biological filtration to take place. After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe and flows back to the pond via the outlet. The Eazy Pod is incredibly simple to clean. The connected air pump is used during the cleaning cycle to agitate the K1 Micro to free up any debris and waste that has built up within the filter. A 70 litre per minute air pump is recommended for use during the cycle cleaning. Please note That only the EazyPod Air and EazyPod Complete models are supplied with a 70 litre per minute air pump and accessory kit.

EazyPod Pump Fed Installation:

By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as 'pump fed' (i.e. the water is fed to the filter using a pump).

EazyPod Gravirty Fed Installation:

*User modification is required on the Eazy Pod to enable Gravity Fed installation. By this we mean that your pump is going to be used to return the filtered water to the pond and therefore your filter will be supplied by gravity via a larger diameter pipe. In this situation the water level in the filter will be at the same level as the pond.

Nexus EazyPod Specifications:

• Max Pond Size: 20,000 Litres
• Max Koi Pond Size 10,000 Litres
• Maximum garden pond flow rate: 10,000 lph
• Maximum Koi Pond flow rate: 5,000 lph
• Kaldnes K1 Micro media: 18 litres included
• Recommended Air Pump:  70 litres
