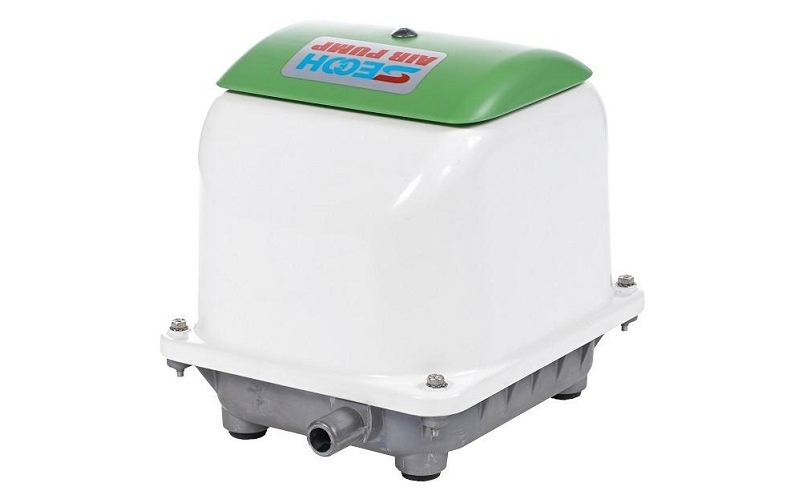

Secoh JDK S 120 Air Pump

This new Secoh JDK 120 air pump deliver the same amount of air as their predicessor but feature less energy consumption (up to 30% depending on the application). In addition the overall dimensions of this new JDK 120 air pump (also about 30% less) compared to the old SLL rage of pumps.. This makes the new JDK 120  airpumps more economical to run, more compact and lighter in weight.

JDK S 120 Long Life Expectancy:

The motor and pump parts are combined on one single construction. The compact and light construction form and the single mechanism guarantee a long and reliable period of operation.

JDK S 120 High Degree of Efficiency:

The principal of elecromagnetic oscillation, which practically has no mechanical friction, minimises power construction and provides a high degree of efficiency.

JDK S 120 Low Noise Level

The soundproof casing and the muffler integrated into the tank base reduce operating noise.

JDK S 120 Low Vibration:

The motor and pump parts are seperated by a vibration-isolating rubber, so only low vibration exists.

JDK S 120 is Completely Oil Free.

The oil-free operation gurantees a dry and unadulterated airflow.

JDK S 120 Pulstaion free Airflow:

Specially formed pump chambers and the muffler integrated into the base provide and airflow which is pratically pulsation-free.

Weatherproof:

The JDK S 120 Air pump are rainproof and weatherproof , however, they should not be exposed to direct sunlight, snow, or rain.

JDK S 120 Product Characteristics:

• Compact design.
• Low energy onsuption.
• Protective Auto Stopper switch included.
• Connecting hose included.
• Aluminium housing

JDK S 120 Product Specifications:

• Air Flow: 140 lpm at 150 mbar
• Voltage: 230 Volts
• Power consumption: 95 watts at 200 Mbar
• Noise Level: 45 db(A)
• Dimensions: 214mm (l) x 185mm (w) 211mm (h)
• Connection: 19mm outer diameter
• Net Weight: 6.4 Kg

Please note:

From the model range JDK 60 upwards including this JDK S 120, aside fom the fact that you get an aluminim housing, The model range from the JDK S 60 upwards contain an auto stopper switch. This is a switch that resides between the two magnets within the air pump and should the diaphragms wear out or split, the auto stopper switch will stop power to the air pump. This can significantly protect your pump as when the magnets are out of line (held in place by the diaphragms) they can rub against the coils resulting in damage to the magnets and the coils themselves. The auto stopper switch significantly reduces this scenario.
