TMC Pro Pond Titan 110 Watt UV

The TMC Pro Pond Titan UV 110 watt uses the latest photocatalytically enhanced UV technology to clear green water fast and is up to 1-1/2 times more effective than a standard UV clarifier. Suitable for ponds up to 108,000 litres with a maximum flow rate of 36,000 lph, this UV clarifier features 2 x 55 watt high-quality UV lamps and is safe for all pond life.

With its ultra-low toxicity, the TMC Pro Pond Titan UV clarifier is built using a specially formulated high UV stabilised compound. The special lining offers excellent UV transmittance and a fused quartz glass sleeve ensures that the lamps reach their optimum temperature. The transparent caps allow direct viewing of your working UV lamps and the modular design makes maintenance a breeze. Each lamp is chambered for optimum efficiency and contact time. The plastic body has a prolonged life due to the UV shield.

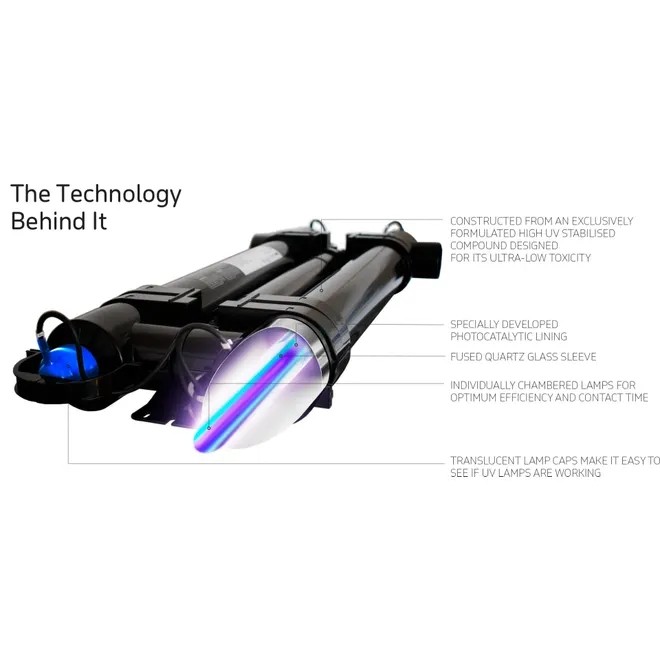

TMC Pro Pond Titan UV 110 watt Pond Clarifier Product Features:

• Individually chambered lamps guarantee short depth of UV penetration for optimum clarification
• Fused quartz glass sleeves offering excellent UV transmittance, as well as ensuring that the lamps can reach their optimum ‘burn temperature’ for maximum UVC production
• Modular design allows for easy maintenance
• Translucent lamp caps allow for easy visual verification
• Universal 2 inch and 63mm solvent weld inlet and outlet
• Hosetails included for use with flexible hose
• Clears green water fast!
• UV effectiveness is enhanced 1-1/2 times
• Resultant hydroxyl radicals work like ozone to clear the water even further
• The reaction is instantaneous, completely contained with no harmful by-products leaving the unit
• Prolonged life of the plastic body due to UV shielding

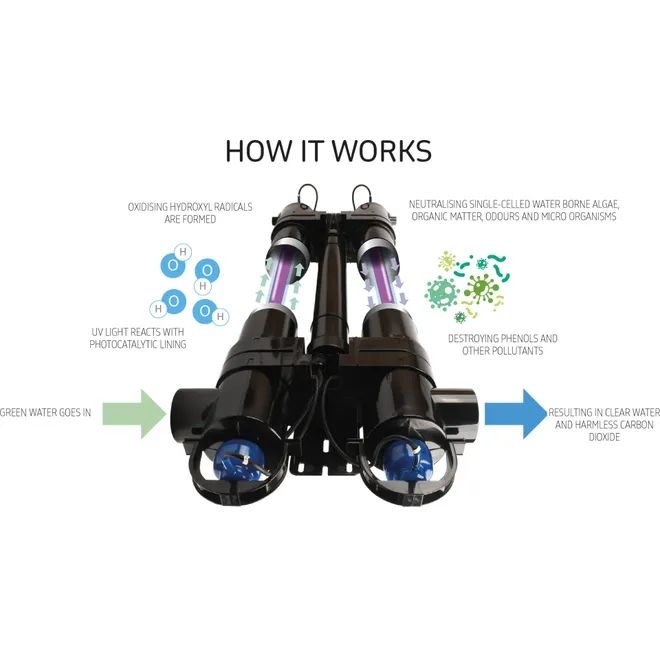

How does this TMC Pro Pond Titan UV 110 watt clarifier work

Upon entering the clarifier, green water reacts with the photocatalytic lining to generate hydroxyl radicals which are then oxidized by the UV light. As a result, the reaction neutralises single-celled algae, organic matter, odours, and microorganisms, thus destroying phenol and other pollutants and leaving behind clear water and harmless carbon dioxide. The reaction is instantaneous and completely contained with no harmful by-products leaving the UV unit.

TMC Pro Pond Titan 110 Watt UV Clarifier Product Specifications:

• Suitable for pond up to: 108,000 litres (24,000 gallons) per hour
• Maximum flow rate:  36,000 litres (8,000 gallons) per hour
• Inlet/outlet size:  2” and 63mm (dual port size)
• Maximum pressure rating: 3 bar (43.5psi)
• Weight: 6.6Kg
• Dimensions: - 964 mm (l)  x 367 mm (h) x 109 mm (w)
• Lamps:  2 x 55 watt  G55T8 UV
• Total Power Consumption: 112 watt.
• Power:  100 - 277 vault  50/60Hz
• 5m cable
• Two year guarantee.
