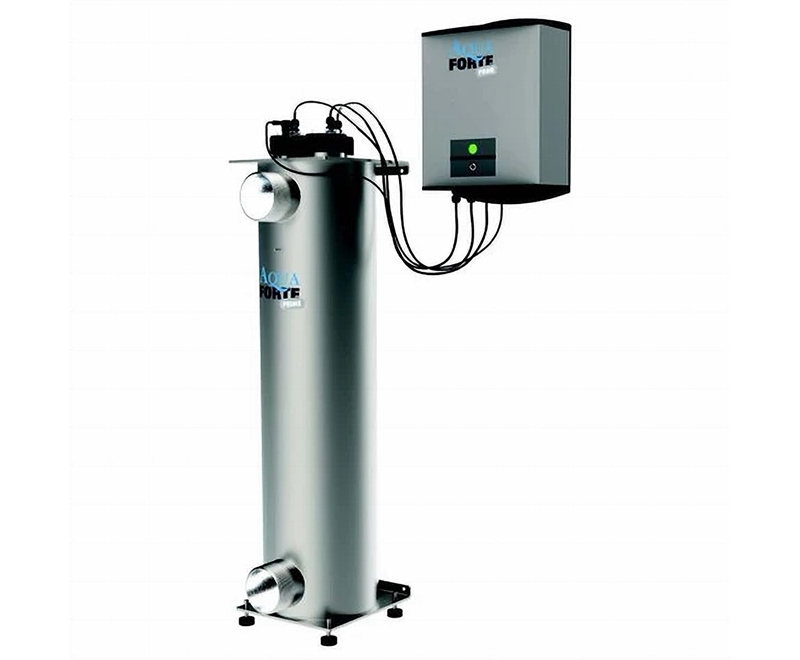

AquaForte Prime 420 watt UV-C
This new AquaForte Prime Buster 420 watt professional UVC sterilizer has been developed by AquaForte and is suitable for larger ponds. This new of Prime Buster 420 watt UV-C sterilizer will cater for ponds up to 44000 gallons (300000 litres) and can handle flow rates up to 7700 gph (35000 lph) due to their innovative design all from it's three x 140 watt high performance Amalagam UVC Lamps.
These new Prime Buster UVC units are made from 316L stainless steel and can be mounted vertically or horizontally. The four leveling feet in the bottom of the floor stand can be removed and installed in the back of the bottom and top mounting plate enabelling the unit to be horizontally mounted and the feet can be used to ensure that the unit is perfectly level.
This Prime Buster 420 watt UV-C can be used with salt water and chlorinated water applications, they all come with seperate ballast control boxes which display the lamp life and condition of the Amalagam UV lamps that these units use. There is a single light on the display that indicates the status of the UV-C Amalagam lamp as follows. Green light indicates everything is ok, Flashing Green light indicates that the lamp(s) are getting close to end of life and Red indicates that the lamp(s) are at end of life and need replacing. Once the lamp(s) have been replaced then the Ballast timer can be reset so the countdown can start again.
This Prime Buster 420 watt UVC is manufactured from 316L stainless steel and has four adjustable feet for levelling the unit which can be installed to mount the UVC-C horizonatally. The unit also has a transparent lamp head to cater for easy manual inspection.
AquaForte Prime Buster 420 watt UVC Product Features:
- Professional UV-C Unit for larger Ponds and Flow Rates.
- Optimum water flow due to innovative design
- Easy to Install
- Transparent lamp head for easy visual inspection
- Stainless Steel 316L housing.
- Base has adjusting screws for levelling
- The adjusting screws can also be mounted in the back of the base and cover plates for horizontal mounting and levelling.
- Flow switch mounted in Ø63 mm socket
Economical to run for the larger ponds and they can be installed on smaller ponds with a good flow rate. The AquaForte Prime Buster 420 watt UVC also contains a flow switch that is mounted in a Ø63 mm socket to protect the unit in the event of loss of water flow.
AquaForte Prime Buster 420 watt UVC Product Specifications:
- Power Consumption: 420 watts
- Max Flow: 7700 gph (35000 lph)
- Max Pond Size: 44000 Galolons (300000 Litres)
- Diameter: 219 mm
- Length: 950 mm
- Lamp Type: 3 x 140 Watt Amalagam
- Flow Switch: Internal Flow Switch
- Lamp Life: Up to 16000 Hours
- Lamp Life Indicator: Yes
- Mounting: Horizontal or Vertical
- Connections: 3 Inch Male Thread
